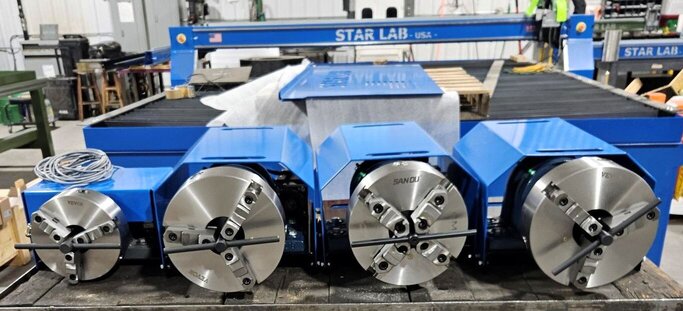

Transform your StarLab plasma table into a complete tube and pipe fabrication system. The Rota-Cut attachment delivers precise, repeatable cuts on round tubing—from simple cutoffs to complex coped joints and notched profiles.
Available Configurations

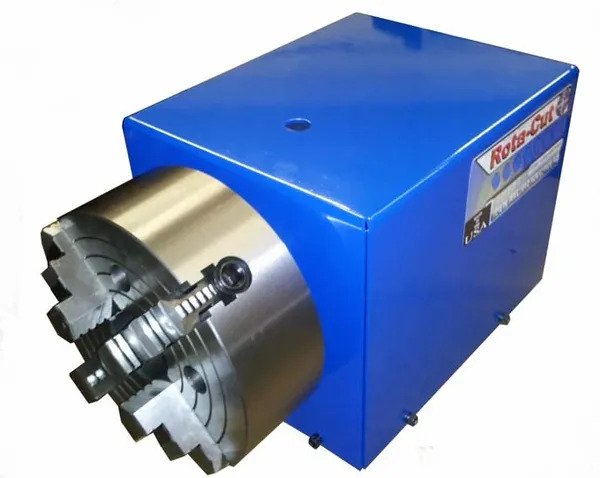

Rota-Cut R2
- True 8" chuck capacity
- 2.5" through-hole
- Servo / Stepper drive
- Software included

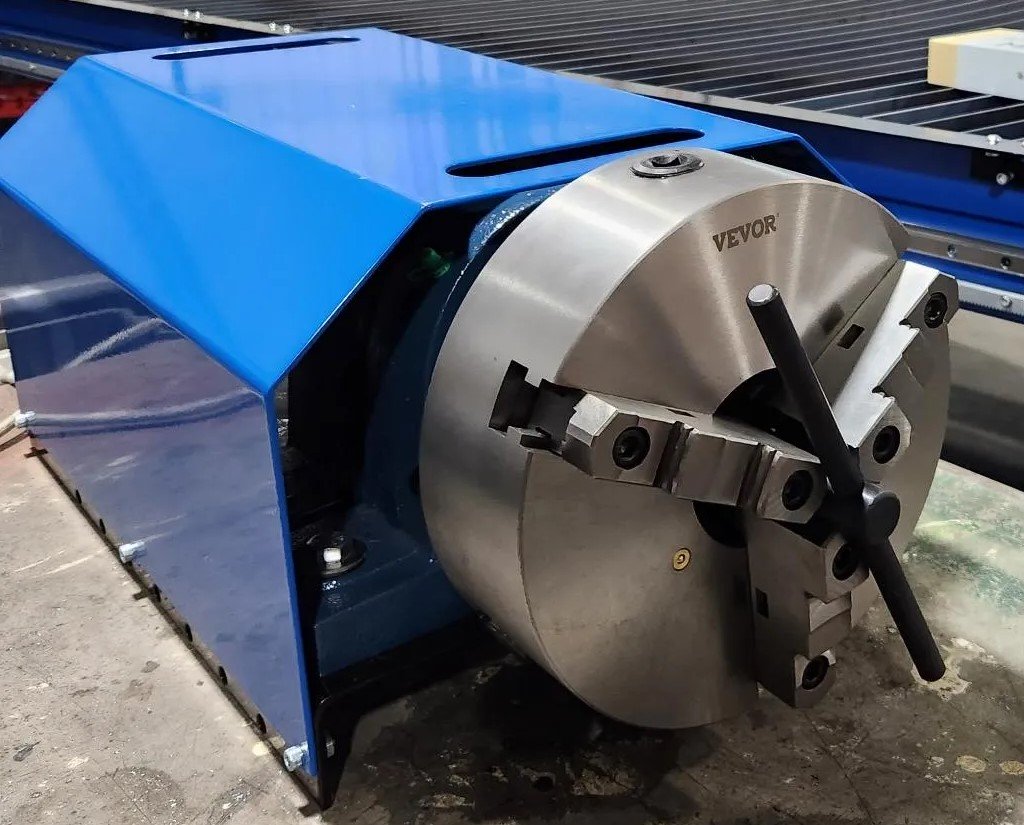

Rota-Cut R3
- True 10" chuck capacity
- 3" through-hole
- Servo / Stepper drive
- Software included
Technical Specifications

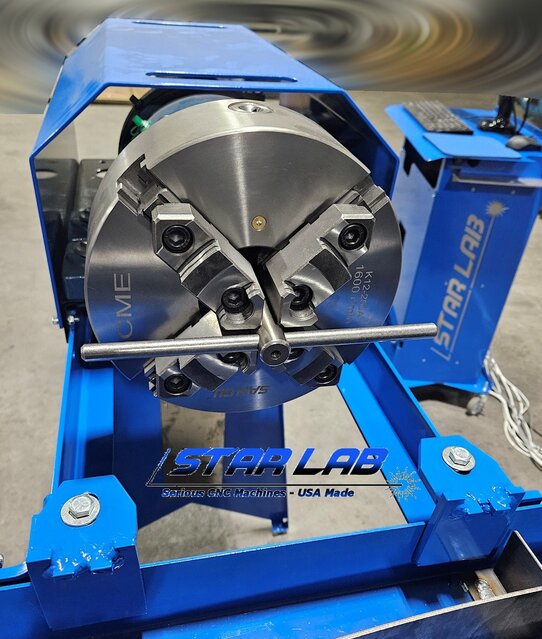

| Chuck Size | 8" (R2) / 10" (R3) — True lathe-style scroll chuck |
| Through-Hole Diameter | 2.5" / 3" — Allows tube to extend through unit for longer stock |
| Drive System | Servo / Stepper motor with precision gear reduction |
| Unit Weight | Approximately 70 - 120 lbs |
| Base Construction | Laser cut steel base plate |
| Housing | Heavy-gauge steel, powder-coated OSHA safety blue |
| Extension Cable | 15' included (longer lengths available) |
| Options | Pipe support / Stand |
| Software Compatibility | CommandCNC (Linux), Flashcut (Windows) |
Key Features

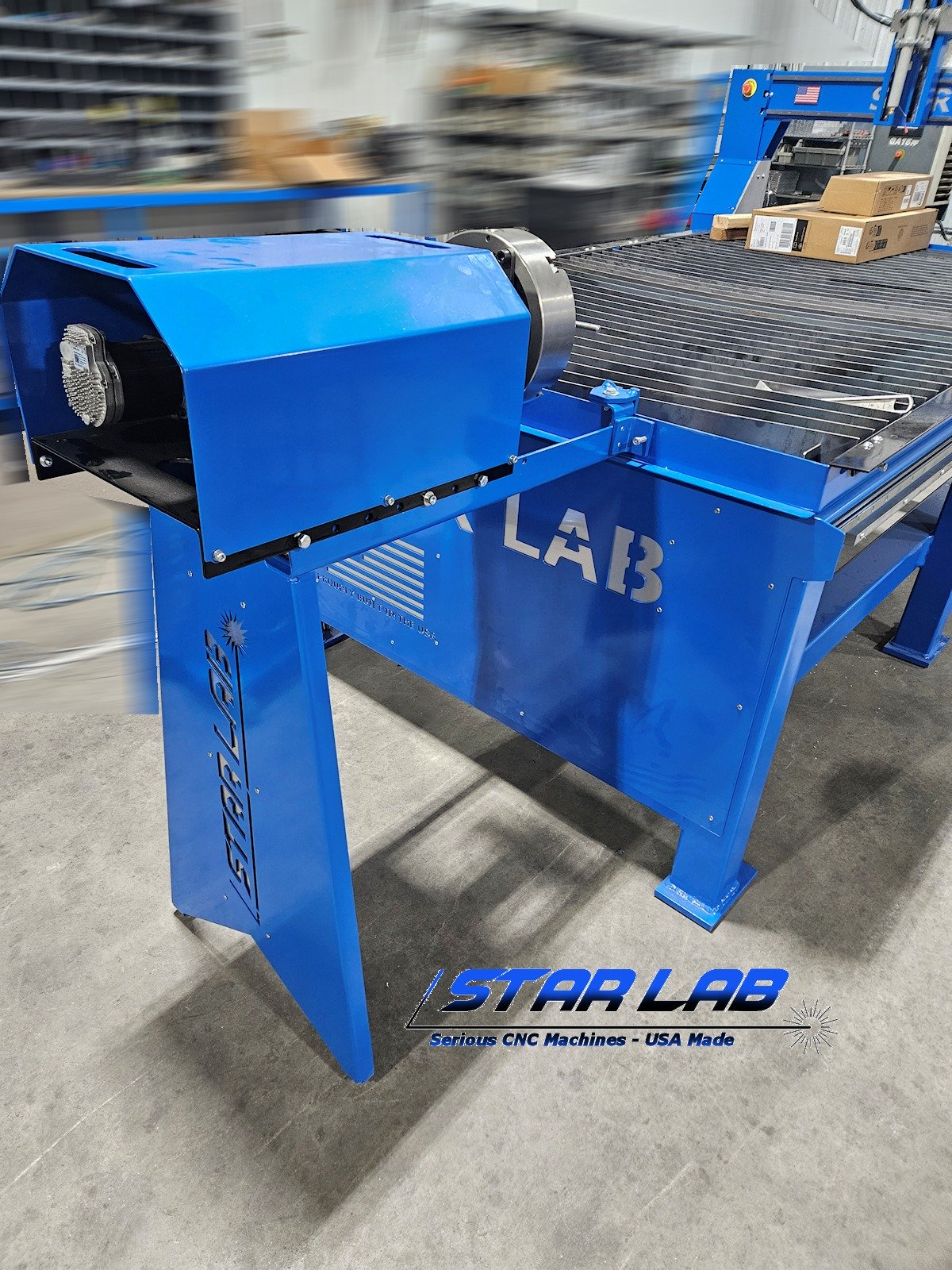

True Through-Hole Design
2.5" / 3" bore allows long tube stock to pass completely through for efficient batch cutting
Heavy-Duty Bearings
Oversized bearing system handles heavy tube stock and maintains accuracy under load
Software Included

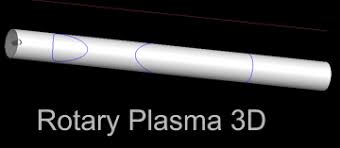

Included software previews toolpaths on 3D tube model before cutting
USA Manufacturing
Built in our Minnesota facility
Typical Applications
Roll Cage Fabrication Pipe Notching / Fish-Mouth Copes Exhaust Systems Handrail & Guardrail Structural Steel Prep HVAC Ductwork Trailer Frames Furniture & Fixtures Art & Sculpture Agricultural Equipment
What's Included
| Rota-Cut Unit | Complete rotary assembly with motor, gearbox, and housing |
| Extension Cable | 15' shielded cable for connection to controller |
| Mounting Hardware | Brackets and fasteners for table-side installation |
| Software | Tube visualization and CAM post processor files |
| Documentation | Setup guide, SheetCam rotary configuration |
Compatibility
The Rota-Cut is designed as a factory option for new StarLab tables and as a retrofit for existing StarLab installations. Compatible with:
| StarLab Pro Series | 4×4, 4×8, 5×10, 6×12, 8×12 |
| StarLab 'Hevi' Series | 5×20, 6×20, 8×20, 6×24, 8×24, 6×40, 8×40, 10×20, 10×24 |
| Control Systems | CommandCNC (standard) / Flashcut (optional) |
| CAM Software | SheetCam TNG (included) |
Ready to Add Tube Cutting?
Contact us for pricing and lead time on your Rota-Cut configuration.
