When you run a metal shop, you don’t have time for gimmicks. You need reliable equipment that turns drawings into parts—fast. CNC plasma cutting fits that bill. It’s a proven, cost-effective way to cut steel and other conductive metals with speed, accuracy, and repeatability. For many job shops, it’s the quickest path from quote to finished part without tying up capital in heavier processes.
StarLab CNC is a Minnesota-based manufacturer of industrial CNC plasma tables. We build machines for shops that value rugged construction, straightforward controls, and parts that fit right the first time. Here’s a clear look at what CNC plasma brings to the table—and what to consider as you plan your setup.
Why CNC Plasma Cutting Works for Real Shops
1) Shorter Lead Times
Plasma cuts quickly and handles a wide range of thicknesses using standard consumables. That means less waiting on outsourced profiles and fewer bottlenecks at the bandsaw, shear, or manual torch.
Result: More jobs stay in-house, schedules tighten up, and customers notice.
2) Real-World Accuracy and Repeatability
With a rigid frame, quality rails, and reliable torch height control (THC), a CNC plasma table produces consistent parts—profile after profile. Holes bolt up. Tabs slot in. Welders stop “making it fit” and start assembling.
Result: Fewer reworks and a cleaner, repeatable process.
3) Lower Cost of Entry vs. Other Cutting Technologies
Compared to other cutting processes, plasma gets you into automated profiling at a price point most shops can justify. Power sources, consumables, and spares are widely available. Training is straightforward.
Result: Faster payback and less risk for small and mid-sized shops.
4) Flexible Material Range
From thin sheet to heavy plate, plasma covers a wide spectrum. With the right setup, you can switch between materials and thicknesses without re-tooling the entire shop.
Result: One machine supports diverse work—repair parts, brackets, gussets, signage, fixtures, and more.
5) Easy Path to Better Nesting and Material Yield
CNC software nests parts tightly and tracks drops. Over time, you’ll reduce scrap and keep remnant management under control.
Result: Predictable material usage and cleaner racks.

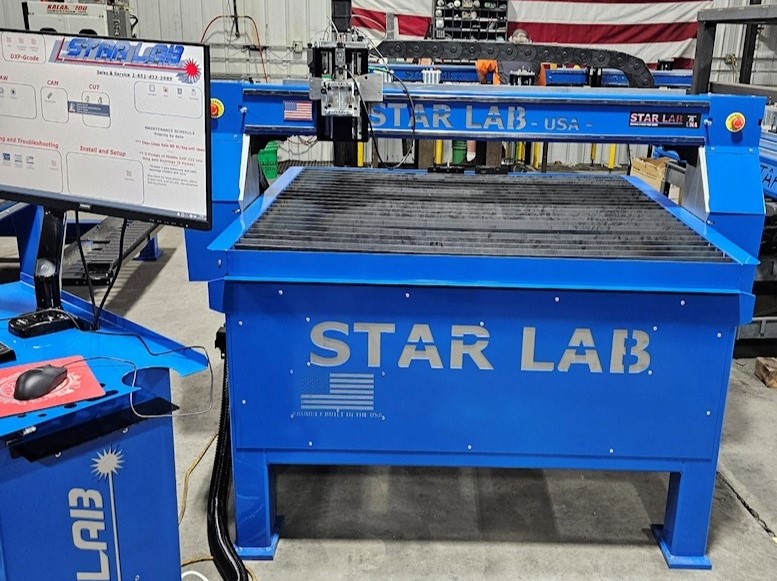

What Makes a CNC Plasma Table Shop-Ready
A machine is only as good as its fundamentals. Here’s what we focus on for dependable daily use:
-
Rugged, welded frame: Stays square under load and heat.
-
True linear guidance: Smooth motion with less play, better edge quality.
-
Reliable THC: Keeps the standoff correct as plate moves, improving cut quality and consumable life.
-
Industrial cabling and routing: Proper shielding and strain relief prevent gremlins mid-shift.
-
Serviceable water or downdraft system: Effective fume control that fits your shop’s layout and compliance needs.
-
Simple, documented controls: So anyone on the floor can load a nest and run parts safely.
Water Table vs. Downdraft: Pick What Fits Your Shop
Water Table
-
Helps suppress smoke and dust at the source.
-
Can reduce plate warping on thin material.
-
Simple to understand and maintain.
Downdraft
-
Keeps the table dry—useful for finishing steps that dislike moisture.
-
Flexible duct routing to your dust collector or filtration.
-
Useful when you prefer to isolate fumes from water.
Both systems can be effective. The choice comes down to your material mix, finishing workflow, and how you handle fume extraction in your building.
Cut Quality: What Actually Moves the Needle
-
Torch height control keeps the arc where it belongs—even if the sheet isn’t perfectly flat.
-
Rigid mechanics reduce vibration and chatter that show up on edges.
-
Correct parameters (speed, amperage, pierce height/time) matter more than expensive magic.
-
Dry, clean air protects consumables and improves edge consistency.
-
Flat, supported material prevents surprises halfway through a nest.
Nail these basics and your parts clean up fast at the bench.
CAD/CAM & Workflow: From Drawing to Part
A simple, repeatable workflow looks like this:
-
Import DXF or draw the part in your preferred CAD.
-
Assign cut rules (lead-ins/outs, kerf compensation, tabs, hole strategies).
-

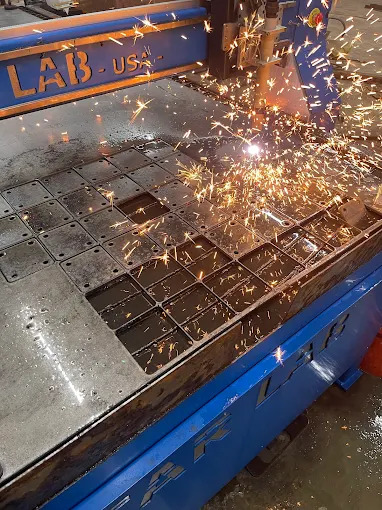

Nest parts to use sheet space wisely and track drops.
-
Save and send the program to the table PC.
-
Zero, probe, run the job, and log the time and material.
Keep a shared library of cut rules by material and thickness. Standardizing this is what turns “an operator” into “your process.”
Safety, Air, and Power: The Unromantic Stuff That Matters
-
Ventilation/filtration: Whether water or downdraft, plan airflow and filtration before the first cut.
-
Air supply: Size your compressor for steady CFM with proper drying/filtration. Moisture ruins consumables.
-
Electrical: Dedicated circuits sized for both the table and the plasma power supply.
-
Grounding and returns: Solid work clamp and clean contact prevent wandering arcs.
-
PPE and housekeeping: Good habits keep operators and equipment in top shape.
Where CNC Plasma Fits in the Shop Mix
CNC plasma doesn’t replace every process. That’s fine. It excels at general plate work, bracketry, base plates, frames, guards, agricultural parts, off-road components, and repair profiles. It’s often the fastest way to move a job forward without queuing up for other departments or vendors.
Common wins:
-
Bring recurring outsource profiles in-house.
-
Speed up prototypes and fixtures.
-
Cut blanks for press brake and weldments the same day the drawing lands.
Buying Checklist: Choose a Table That’s Built to Work
-
Frame: Welded, square, and serviceable.
-
Motion: Profile linear rails/bearings with proper alignment.
-
THC: Proven torch height control with sensible probing.
-
Controls: Clear interface, documented, and supported.
-
Fume management: Water or downdraft sized for your work.
-
Support: Real parts, real humans, and clear documentation.
-
Expandability: Room for rotary, scribing, or routing if your work evolves.
Frequently Asked Questions (Straight Answers)
What materials can I cut with plasma?
Any electrically conductive metal, including mild steel, stainless, and aluminum. Parameter windows vary by power source and consumables.
How thick can I cut?
That depends on the plasma power source and torch. Shops typically size the system to their core work instead of chasing extremes.
How accurate is plasma?
With a rigid machine, good THC, and tuned parameters, you’ll get consistent, repeatable parts suitable for most fabrication work without extra drama.
What about operating costs?
Expect routine consumables and electricity, plus air and filtration maintenance. Keeping air clean and parameters dialed reduces waste.
Water table or downdraft?
Both work. Choose based on your finishing process, shop ventilation strategy, and material mix.
Why StarLab CNC
We design and build industrial CNC plasma tables in Minnesota for shops that prize reliability over flash. Our machines focus on:
-
Built-to-last frames and precision motion for clean edges
-
Dependable torch height control for consistent cuts
-
Serviceable fume solutions that fit real buildings
-
Clear documentation and support so your team can run parts, not chase settings
If you’re in the Upper Midwest—or anywhere that values straight talk and stout equipment—let’s discuss your work mix and size a table that makes sense for your shop.
